Grader Products

Ironquip makes rippers for a wide range of Caterpillar graders. All Ironquip Rippers are produced using the highest quality materials. Welding is done with low hydrogen electrodes to provide the greatest strength and no distortion. All are factory tested prior to shipment.

Grader Ripper Brochure View Specs

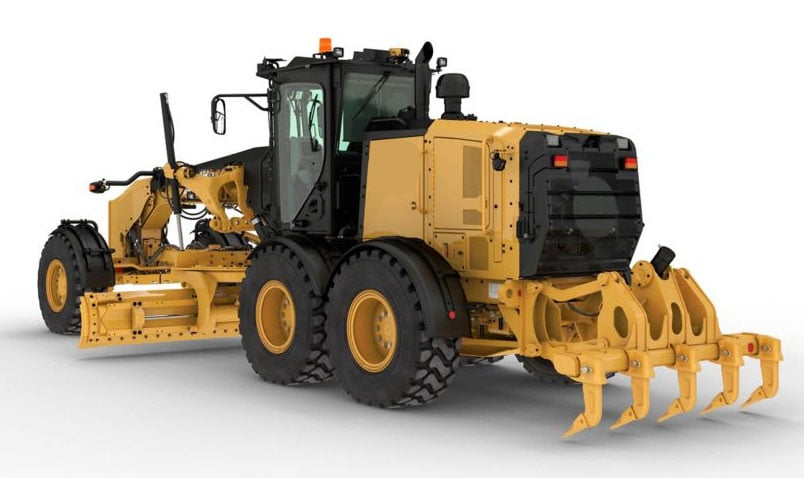

Grader Ripper

Grader Ripper Features

9 Scarifier shank pockets

5 ripper shank pockets (3 standard shank provided)

GRADER RIPPER FEATURES GRADER RIPPER FEATURES MOBILE

Optional Adjustable Link Arm

SPECIFICATIONS

CATEGORY DESCRIPTION
MANUFACTURE FIT
  • CATERPILLAR 12H, 140K, 160H, 143H, 163H, 12K, 140K - ALL SERIES
  • CATERPILLAR 12M, 140M, 160M, 140, 150, 160 - ALL SERIES
  • DEERE 770G/GP, 772G/GP, 870G/GP, 827G/GP
CYLINDERS 1
LINK ARMS OPTIONAL ADJUSTABLE LINK ARMS ALLOW FOR EASE OF INSTALLATION.
SHIPPING DIMENSIONS
  • 91" WIDTH
  • 67" DEPTH
  • 39" HEIGHT
NUMBER OF POCKETS
  • 5 RIPPER POCKETS
  • 9 SCARIFIER POCKETS
NUMBER OF SHANKS 3 STANDARD SHANKS PROVIDED
